Gears: | 3 Speed | Range Per Power: | 160 Km |
---|---|---|---|
Frame Material: | Aluminum Alloy | Wheel Size: | 18" |
Max Speed: | >50km/h | Voltage: | 74V |
Power Supply: | Lithium Battery | Braking System: | Hydraulic Disc Brake (Hydraulic Brake Pad) |
Torque: | 270 Nm | Charging Time: | 1~3 Hours |
Motor Position: | Central Motor | Battery Position: | Integrated Battery |
Battery Capacity: | 35 Ah | Tire Width: | F 70/100-19 Off-road , R 90/100-18 Off-road |
Battery: | 74V / 2590 Kwh, LG Premium 21700 Lithium Cells | Brakes: | Front And Rear 4-piston Hydraulic Disc |
Charging: | 2-3 H With Quickcharge Function | Controller: | Sine Wave Controller |
Waterproof: | IP67 | Electric Motor: | Air Cooled Permanent Magnet Motor |
Sprocket: | 13-58T | Rated Power: | 5 KW |
Peak Power: | 12.5 KW | Max Torque: | 58 N.m Motor/270 N.m Wheel |
Battery | |
Capacity: | 35Ah / 2590Wh |
Cells: | LG Premium 21700 lithium cells |
Features: | Removable, can be charged when installed in bike or separately. |
Voltage (nominal): | 74V |
Brakes | |
Type: | Disc brakes, Four piston calipers, alloy levers. Hand lever for front- and rear brake. |
Brake mode 1: | Motor brake with energy regeneration |
Brake mode 2: | Freewheel, no motor brake |

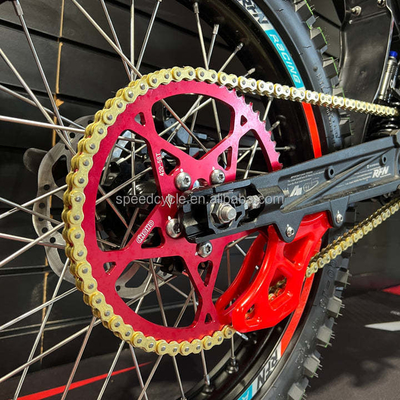

Drivetrain | |
Chain: | 420 chain with DX |
Electric motor: | Internal Rotor Permanent Magnet Synchronous Motor |
Front sprocket: | 11T |
Rated power: | 5kW |
Peak power: | 12.5kW |
Rear sprocket: | 58T |
Torque (motor axle): | 58 N·m |
Torque (wheel): | 305 N·m |
Type: | Direct drive, chain |
Dimensions | |
Fork angle: | 24° |
Ground clearence: | 320mm - 12.60'' |
Offset: | 15mm in triple clamps, 45mm in forks |
Seat height: | 860mm - 33.86'' |
Trail: | 111mm - 4.37'' |
Wheel base: | 1330mm - 52.36'' |
Suspension | |
Travel: | F 200mm R 75mm |
Type: | F Upside-down air forks featuring 45mm stanchion tubes for extra rigidity and strength, Double shoulder adjustable front damper. R 240mm shock ,Compression damping / rebound damping adjustable + Spring preload adjustable. |
Speed & Range | |
Range: | 140 Km (Test data - Load: 75 Kg, 25 Km/h uniform speed, ambient temperature: 25 °C, flat pavement, standard tires, standard tire pressure). |
Top speed: | 60km/h | 37.5mph |
