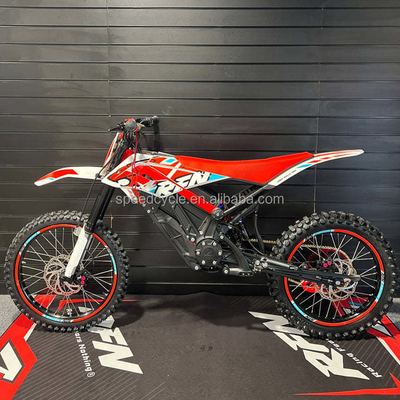

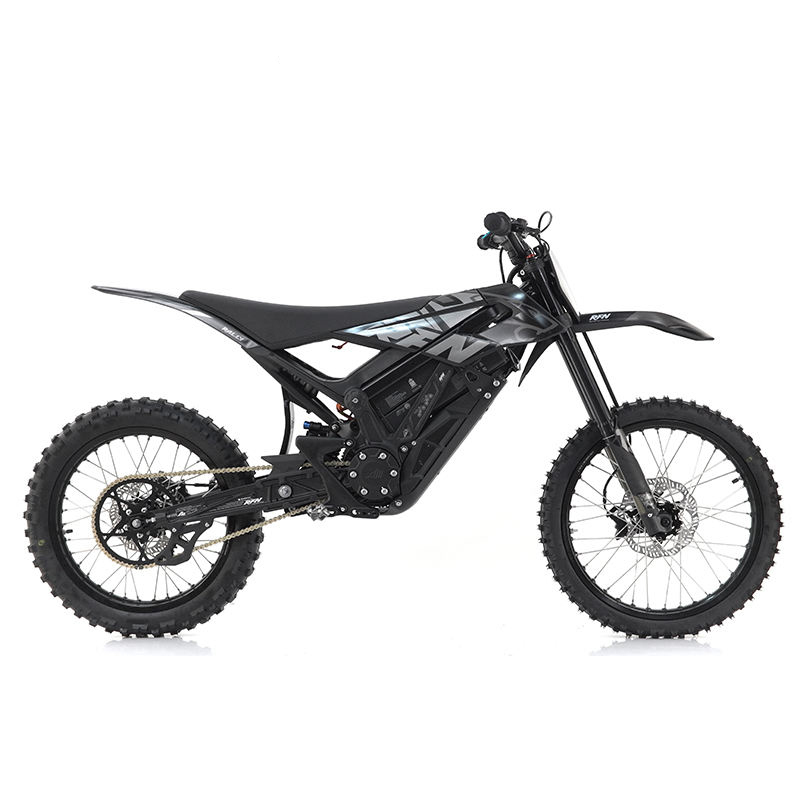

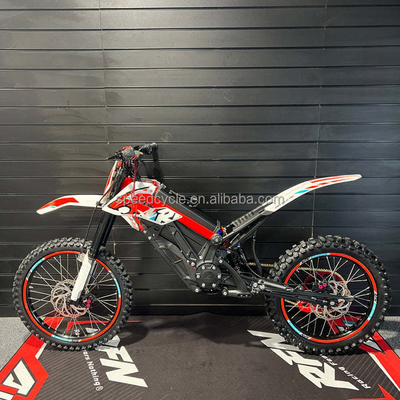

Apollo RFN Electric Bike with Central Motor 74V Lithium Battery Power Supply Aluminum Alloy Frame 3 Speed Gears

Apollo RFN Electric Bike with Central Motor 74V Lithium Battery Power Supply Aluminum Alloy Frame 3 Speed Gears

Apollo RFN Electric Bike with Central Motor 74V Lithium Battery Power Supply Aluminum Alloy Frame 3 Speed Gears
  • Apollo RFN Electric Bike with Central Motor 74V Lithium Battery Power Supply Aluminum Alloy Frame 3 Speed Gears
  • Apollo RFN Electric Bike with Central Motor 74V Lithium Battery Power Supply Aluminum Alloy Frame 3 Speed Gears
  • Apollo RFN Electric Bike with Central Motor 74V Lithium Battery Power Supply Aluminum Alloy Frame 3 Speed Gears
  • Apollo RFN Electric Bike with Central Motor 74V Lithium Battery Power Supply Aluminum Alloy Frame 3 Speed Gears
  • Apollo RFN Electric Bike with Central Motor 74V Lithium Battery Power Supply Aluminum Alloy Frame 3 Speed Gears
  • Apollo RFN Electric Bike with Central Motor 74V Lithium Battery Power Supply Aluminum Alloy Frame 3 Speed Gears
  • Apollo RFN Electric Bike with Central Motor 74V Lithium Battery Power Supply Aluminum Alloy Frame 3 Speed Gears
Product Details:
Place of Origin: China
Brand Name: Apollo
Model Number: RFN
Contact Now
Detailed Product Description
Gears: 3 Speed Range Per Power: 160 Km
Frame Material: Aluminum Alloy Wheel Size: 18"
Max Speed: >50km/h Voltage: 74V
Power Supply: Lithium Battery Braking System: Hydraulic Disc Brake (Hydraulic Brake Pad)
Torque: 270 Nm Charging Time: 1~3 Hours
Motor Position: Central Motor Battery Position: Integrated Battery
Battery Capacity: 35ah/43ah Tire Width: F 70/100-19 Off-road , R 90/100-18 Off-road
Battery: 74V / 2590 Kwh, LG Premium 21700 Lithium Cells Brakes: Front And Rear 4-piston Hydraulic Disc
Charging: 2-3 H With Quickcharge Function Controller: Sine Wave Controller
Waterproof: IP67 Electric Motor: Air Cooled Permanent Magnet Motor
Sprocket: 13-58T Rated Power: 5 KW
Peak Power: 12.5 KW Max Torque: 58 N.m Motor/270 N.m Wheel

Product Description
Apollo RFN Electric Bike with Central Motor 74V Lithium Battery Power Supply Aluminum Alloy Frame 3 Speed Gears 0
Apollo RFN Electric Bike with Central Motor 74V Lithium Battery Power Supply Aluminum Alloy Frame 3 Speed Gears 2
Specification

CITY RANGE

140
KM

PEAK POWER

12.5
KW

CRUB WEIGHT

70
KG

BATTERY

35
AH

SHOCK ABSORBERS

200
MM

TOP SPEED

60
KM/H
FULL SPECIFICATION
Battery
Capacity:
35Ah / 2590Wh
Cells:
LG Premium 21700 lithium cells
Features:
Removable, can be charged when installed in bike or separately.
Voltage (nominal):
74V
Brakes
Type:
Disc brakes, Four piston calipers, alloy levers. Hand lever for front- and rear brake.
Brake mode 1:
Motor brake with energy regeneration
Brake mode 2:
Freewheel, no motor brake

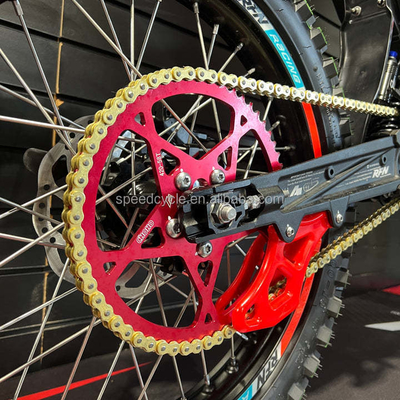

Drivetrain
Chain:
420 chain with DX
Electric motor:
Internal Rotor Permanent Magnet Synchronous Motor
Front sprocket:
11T
Rated power:
5kW
Peak power:
12.5kW
Rear sprocket:
58T
Torque (motor axle):
58 N·m
Torque (wheel):
305 N·m
Type:
Direct drive, chain
Dimensions
Fork angle:
24°
Ground clearence:
320mm - 12.60''
Offset:
15mm in triple clamps, 45mm in forks
Seat height:
860mm - 33.86''
Trail:
111mm - 4.37''
Wheel base:
1330mm - 52.36''
Suspension
Travel:
F 200mm R 75mm
Type:
F  Upside-down air forks featuring 45mm stanchion tubes for extra rigidity and strength, Double shoulder adjustable front damper.
R 240mm shock ,Compression damping / rebound damping adjustable + Spring preload adjustable.
Speed & Range
Range:
140 Km (Test data - Load: 75 Kg, 25 Km/h uniform speed, ambient temperature: 25 °C, flat pavement, standard tires, standard tire
pressure).
Top speed:
60km/h | 37.5mph
Apollo RFN Electric Bike with Central Motor 74V Lithium Battery Power Supply Aluminum Alloy Frame 3 Speed Gears 4
Certifications
Apollo RFN Electric Bike with Central Motor 74V Lithium Battery Power Supply Aluminum Alloy Frame 3 Speed Gears 6
Exhibition
Apollo RFN Electric Bike with Central Motor 74V Lithium Battery Power Supply Aluminum Alloy Frame 3 Speed Gears 8
Shipping & payment
Apollo RFN Electric Bike with Central Motor 74V Lithium Battery Power Supply Aluminum Alloy Frame 3 Speed Gears 10
FAQ
Apollo RFN Electric Bike with Central Motor 74V Lithium Battery Power Supply Aluminum Alloy Frame 3 Speed Gears 12
1. who are we?
We are based in Jiangsu, China, start from 2019,sell to Eastern Europe(20.00%),South America(20.00%),North America(20.00%),Southern Europe(5.00%),Western Europe(5.00%),Northern Europe(5.00%),Eastern Asia(5.00%),Oceania(4.00%),Southeast Asia(4.00%),Mid East(3.00%),South Asia(3.00%),Africa(3.00%),Central America(3.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Electric Bike,Electric Bicycle,E-Bike,Bicycle,Ebike

4. why should you buy from us not from other suppliers?
1. Over ten-year experience in producing fitness equipments. 2. Strong manufacturing capacity, various kinds of products. 3. Professional foreign trade team. R&D team, multiple patent certificates. 4. Certified by CE & ISO 9001. 6. Quick delivery time

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DDP,DDU,Express Delivery,DAF;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,French,Russian,Korean,Italian
